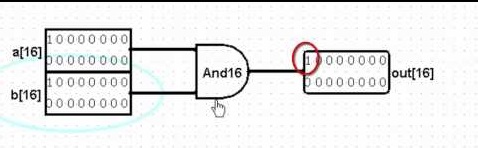

And16 Gate (輸入是 16 位的及閘)

16條輸入/輸出的AND

    |        a         |        b         |       out        |
    | 0000000000000000 | 0000000000000000 | 0000000000000000 |
    | 0000000000000000 | 1111111111111111 | 0000000000000000 |
    | 1111111111111111 | 1111111111111111 | 1111111111111111 |
    | 1010101010101010 | 0101010101010101 | 0000000000000000 |
    | 0011110011000011 | 0000111111110000 | 0000110011000000 |
    | 0001001000110100 | 1001100001110110 | 0001000000110100 |

    /**
     * 16-bit bitwise And:
     * for i = 0..15: out[i] = (a[i] and b[i])
     */

 CHIP And16
   {
    IN a[16], b[16];
    OUT out[16];

    PARTS:
    And(a=a[0],b=b[0], out=out[0]);
    And(a=a[1],b=b[1], out=out[1]);
    And(a=a[2],b=b[2], out=out[2]);
    And(a=a[3],b=b[3], out=out[3]);
    And(a=a[4],b=b[4], out=out[4]);
    And(a=a[5],b=b[5], out=out[5]);
    And(a=a[6],b=b[6], out=out[6]);
    And(a=a[7],b=b[7], out=out[7]);
    And(a=a[8],b=b[8], out=out[8]);
    And(a=a[9],b=b[9], out=out[9]);
    And(a=a[10],b=b[10],out=out[10]);
    And(a=a[11],b=b[11],out=out[11]);
    And(a=a[12],b=b[12],out=out[12]);
    And(a=a[13],b=b[13],out=out[13]);
    And(a=a[14],b=b[14],out=out[14]);
    And(a=a[15],b=b[15],out=out[15]);
   }
